Compound Robot Educational Logistics Solution

Educational Solution Introduction

The Compound Robot Logistics Kit is a comprehensive training solution developed by Elephant Robotics specifically for colleges and event training. It integrates key components such as robots, control systems, vision systems, and conveyor systems, utilizing a modular design for flexible configurations. This enables seamless execution of logistics automation tasks, including item detection, loading/unloading, mobile handling, and classified transportation. Additionally, it supports educational projects such as simulation, robot system calibration, visual recognition, path planning, communication control, and ROS operating system training. The kit is complemented by a specialized curriculum system, designed to help learners quickly master intelligent robot system skills, enhancing both practical and innovative capabilities in an efficient manner.

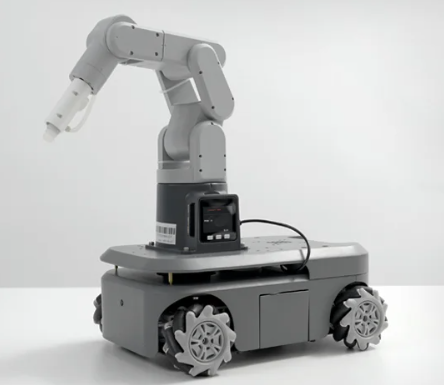

Compound Robot

The base of compound robot is powered by the NVIDIA® Jetson Nano 4GB core board and runs on th Ubun 20.04 operating system, tailor-made by Elephant Robotics for robots, providing a smooth and user-friendly experience.
The actuator mechArm 270 is a 6-DOF robotic arm modeled after industrial manipulators. It can meet the requirements of operations, and its end-effector can simultaneously mount a camera and a suction pump, enabling it to replicate the functions of a palletizing robot.

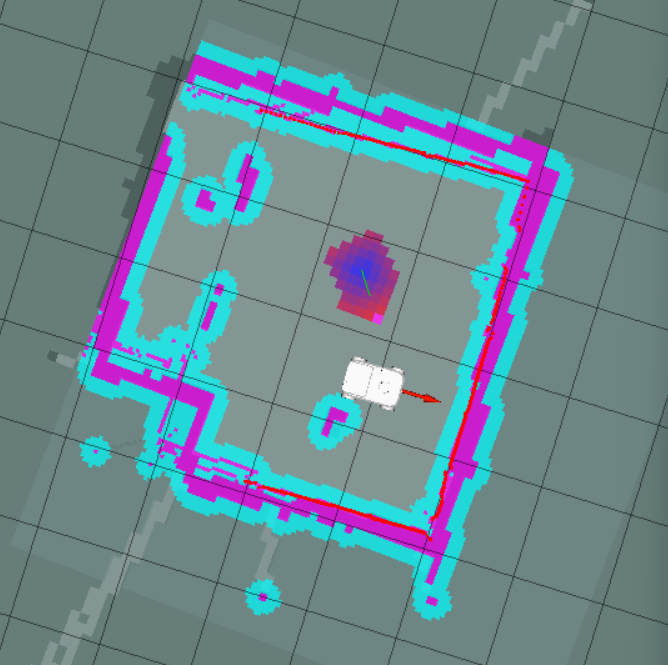

The system supports building custom simulation environments, allows flexible configuration of operation paths, and fully implements core functional modules such as SLAM mapping, autonomous navigation, dynamic obstacle avoidance, and global path planning.

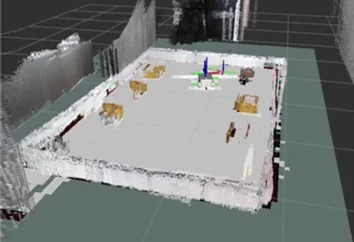

Simulated Logistics Transportation Scenario

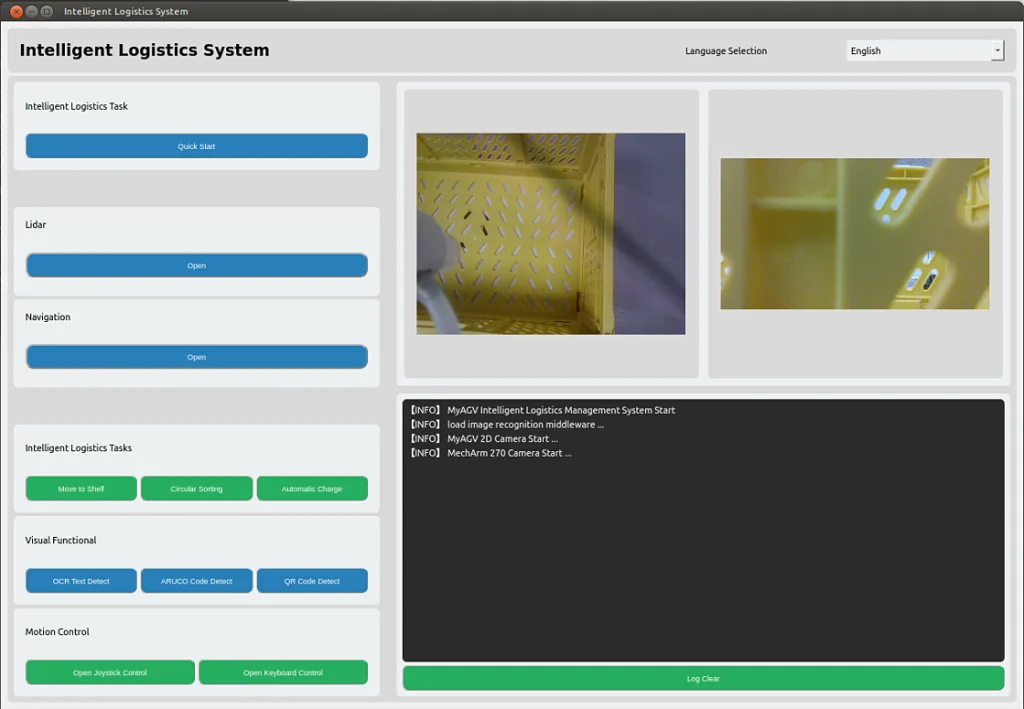

One-click Start Visual Software Interface

Compound RobotApplication Guidance

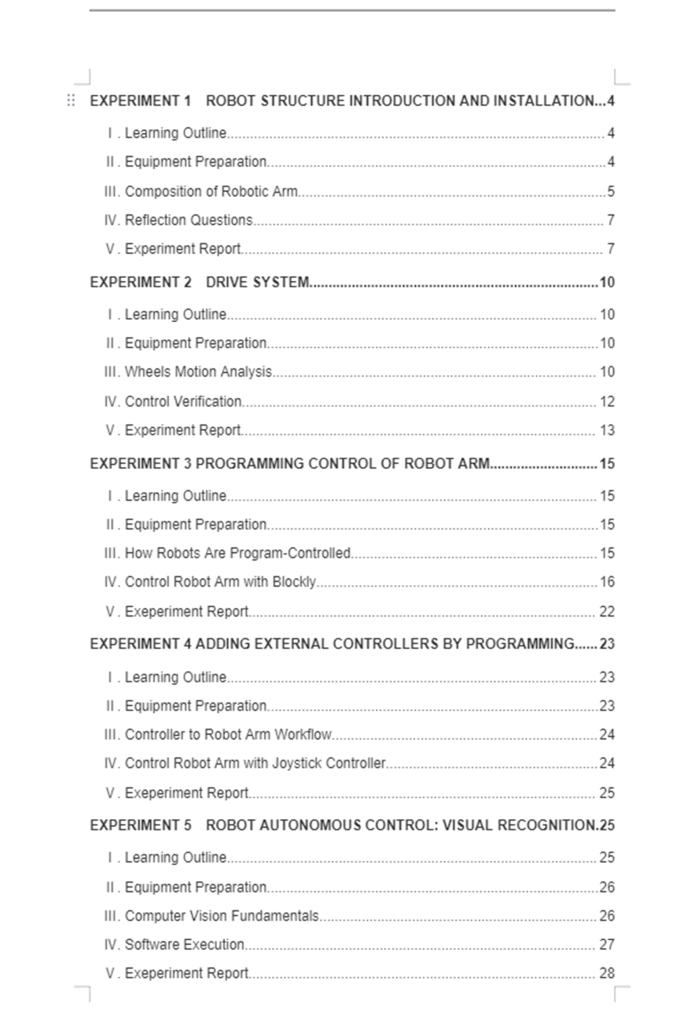

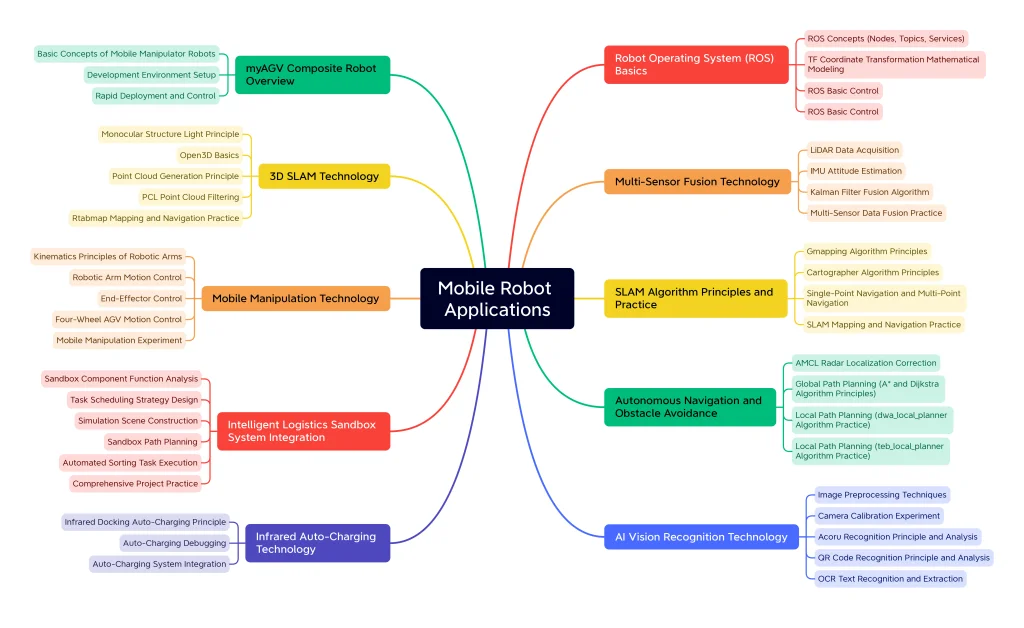

Educational Course Support
