Mercury B1 Instant Photo Kit
Semi-Humanoid Robotic Shooting Solution with Mechanical Instax Control
Fully mechanical operation of Fuji Instax Mini camera, zero complex cloud & camera protocol development, instant physical photo output for exhibition, hospitality & scenic spot marketing.
Mercury — Link the Future
Mercury: One-Stop Robotic Instant Shooting Booth Solution

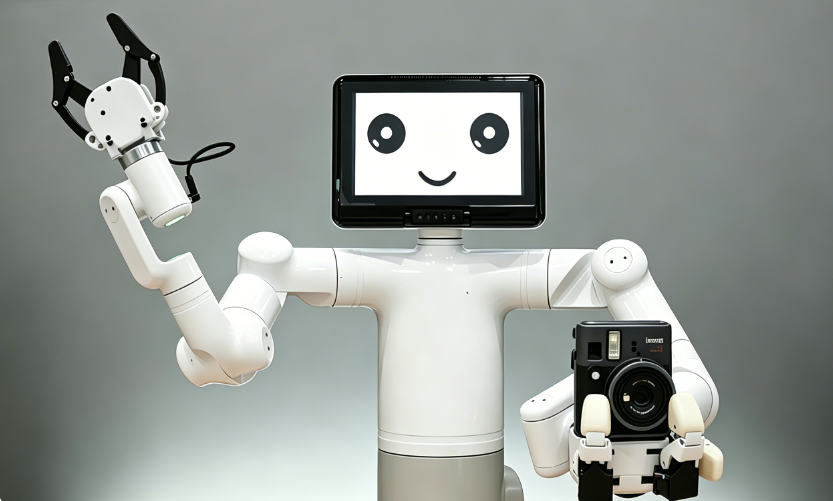

Mercury B1 Instant Photo Kit is a complete ready-to-use robotic photography solution built on Mercury B1 semi-humanoid robot. Equipped with dual end-effectors: three-finger dexterous hand for stable camera holding and F100 adaptive gripper for physical shutter pressing.
Dual End-Effector Collaborative Shooting System

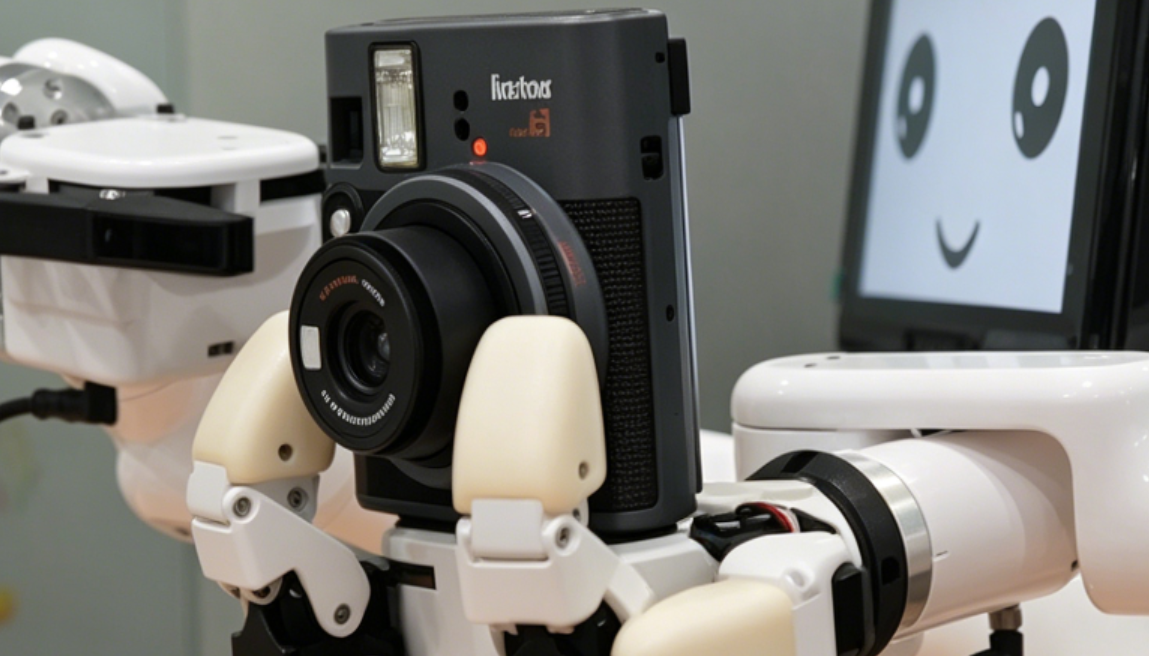

- Custom 3-finger dexterous hand: Silicone flexible fingers, firmly fix Fuji Instax Mini camera with nano adhesive tape
- F100 adaptive gripper: Precise linear clamping movement to physically press camera shutter
- Separate two functional end-effectors, independent & coordinated control by dual 7-axis arms
- Adjustable clamping force, no scratch or damage to camera body

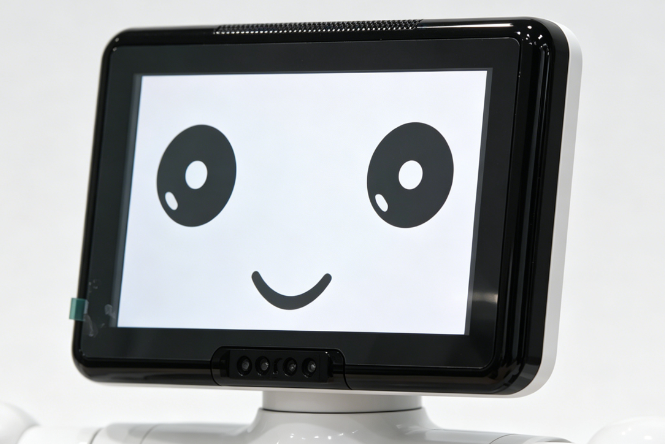

9" Interactive Emotional Touchscreen
- 9-inch multi-touch LCD screen, custom facial expression display to attract visitors
- Real-time gesture recognition, auto activate shooting mode when visitors wave hands
- Quick one-click booth mode preset without complicated configuration

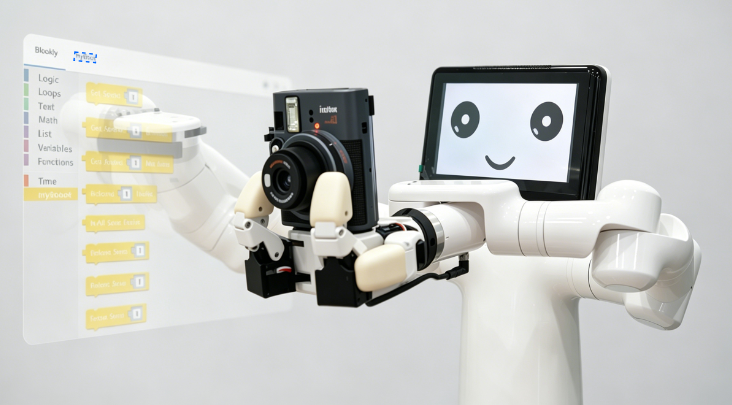

Low-Code Open Programming Ecosystem
- Graphic myBlockly programming, pre-built robotic photo shooting project templates
- Support Python & ROS secondary development for custom shooting logic
- Compatible with visual recognition module to automatically frame human bodies
- Fast deployment, minimal R&D cost for exhibition & commercial scene customization
Product Operation Demo Video
Full Kit Bill of Materials
| Material Name | Core Function | Quantity |
|---|---|---|
| Mercury B1 Semi-Humanoid Robot Main Body | Gesture recognition, voice & vision human-machine interaction | 1 |
| F100 Adaptive Gripper | Mechanical pressing of camera shutter | 1 |
| End-Effector | 3-Finger Dexterous Hand + F100 Adaptive Gripper | 1 |
| Nano Adhesive Tape | Auxiliary fixation of instant camera | Several |
| Fuji Instax Mini Instant Camera | Capture photos | 1 |
| Instax Mini Photo Films | Consumables for photo printing | Several |
| Decorative Viewfinder Frame (Optional) | Background decoration for shooting scenes | 1 |
*If you want a custom camera model, please contact us.
Commercial Application Scenarios
Exhibition & Trade Show
Deploy the robot at exhibition entrance to invite visitors for group photos. Print physical photos on-site as brand souvenirs, boost booth traffic and retain customer memories.
Themed Restaurant & Hotel
Serve as an intelligent welcome robot, take commemorative instant photos for first-time guests to improve customer experience and create unique store highlights.
Scenic Spots & Tourist Attractions
Place the robot beside landmark views to automatically shoot tourist group photos. Printed instant photos become exclusive travel souvenirs for visitors.
Full Specifications
| Item | Mercury B1 Instant Photo Complete Kit |
|---|---|
| Robot Type | Dual-arm Semi-Humanoid Robot |
| Degrees of Freedom | 17 DOF (2×7-Axis Arms + Chin Camera+Neck joint+Waist joint) |
| Maximum Payload | 1kg |
| Position Repeatability | ±0.05mm |
| Head Display | 9-inch HD Multi-Touch LCD |
| Matching Camera | Fuji Instax Mini Instant Camera (Included) |
| End-Effector Combination | 3-Finger Dexterous Hand + F100 Adaptive Gripper |
| Control Tool | myPanel, myBlockly, Python / ROS SDK |
| Power Supply | 24V DC |
| IO | 24V 6 Input, 6 Output |
| Communication Protocol | WIFI / Ethernet / Bluetooth / USB / Serial Port |
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 1.9GHz |
| GPU | 512 core NVIDIA Volta architecture GPU with 64 Tensor Cores,1100MHz |
| Overall Dimension | 200*192.5*537mm |
| Total Kit Weight | 9.7kg |
Open Software Platform for Fast Commercial Deployment
- Pre-built photo booth program cases, no complex image system development required
- myBlockly drag-and-drop programming, quickly adjust shooting sequences
- ROS & Python API for advanced custom scene logic
- Built-in voice & gesture recognition algorithm, ready to use out of box
